Crystallography

The thermomechanical behavior of shape memory alloys is due to a martensitic-austenic phase transition and - at low temperature - to martensitic twinning. In single crystals the transition and the twins can be observed with the naked eye.
Just click on any of the small pictures to display a larger version.

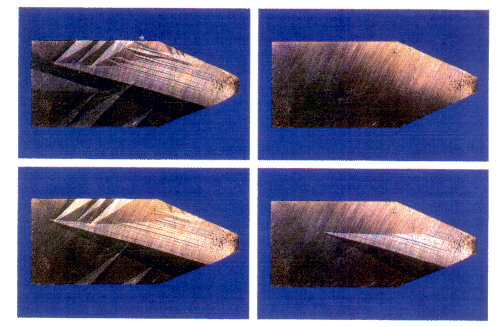

Cooling of a CuAl14Ni4.2 (wt%) crystal from 60°C to 20°C and appearance of arrow-shaped martensitic twins.(size 5cmx2cm)

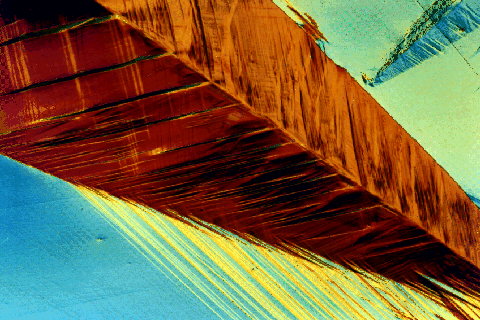

Martensitic plate groups in CuAl14Ni4.2 (wt%) single crystal in austenitic matrix.

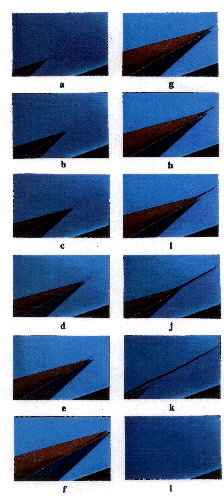

a. through l.
Growth and decay of a martensitic arrow in an austenitic matrix upon cooling and subsequent heating.CuAl14Ni4.2 (wt%) single crystal.

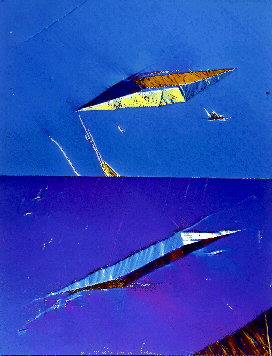

Martensitic arrow in austenitic matrix. CuAl14Ni4.2 (wt%) single crystal.
