A download ...

... is usually not needed to use the facility, but your browser should provide this Java-Version, for example InternetExplorer 5.01 (or higher) or other equivalent software. Used Java-Version is 1.3.0_02. Full Live-Stream performance could be possible with DSL-Connection or LAN. In that case you can reach 15 frames per second. With another connection and/or if more than 1 client is viewing, the frames per second will slow down.

  • a maximum of 5 clients viewing the application, are permitted
  • the first client of these 5 can operate the panel
  • every request will be informed by a advice in the webpage
  • the controlling client can take 2 minutes maximum to make his moves
    (you will see a progressbar at the bottom)
  • 1 minute without a move the connection will be closed automatically
  • after pressing a controll-button the SMA-spring will be heated for ca. 10 seconds, in that time all buttons will be enabled

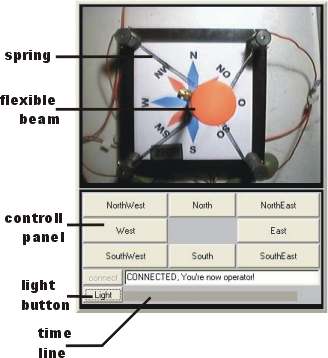

  • during the Live-Stream a window appears showing a moving stick, with a red cylinder on his head-end, from above
  • if you need more light to view this little experiment, use the light-button in your controll-panel

Used hardware:

  • Host(Server) is a 1,2 MHz AMD Processor with 256 MB RAM
  • the webcam is a Philips ToUcam Pro with USB-interface
  • sended signals by the 8 data-lines of the Parallel-Port, via Koaxial-Cable, serving to approach 5 semiconductor-relais
  • 4 of the relais are for controlling, one is to switch the light (if necessary)
  • the Control-Relais are switching power from a laboratory-transformator to heat the NiTi-spring (100mm length, 0,5mm thickness of wire, 5mm diameter of spring)
  • for light we used directly line currrent and a small spotlite
  • parallelport "LPT1" in EPP-Mode

Used software:

  • JavaApplet (small internet-capable programm) to control and visualize the panel at the webpage
  • commercial Live-Stream software streaming the webcam picture
  • ApacheServer program connecting client and Host (in this case it is also the Server)
  • a small Java application from the book "MSR mit Java" to connect the control-level of the operation system with our Applet
  • freeware Parallel-Port driver helping to avoid the security restrictions from the OS
  • JavaServer executing orders by the operaterclient
